Perfect for Larger 24V Trolling Motors

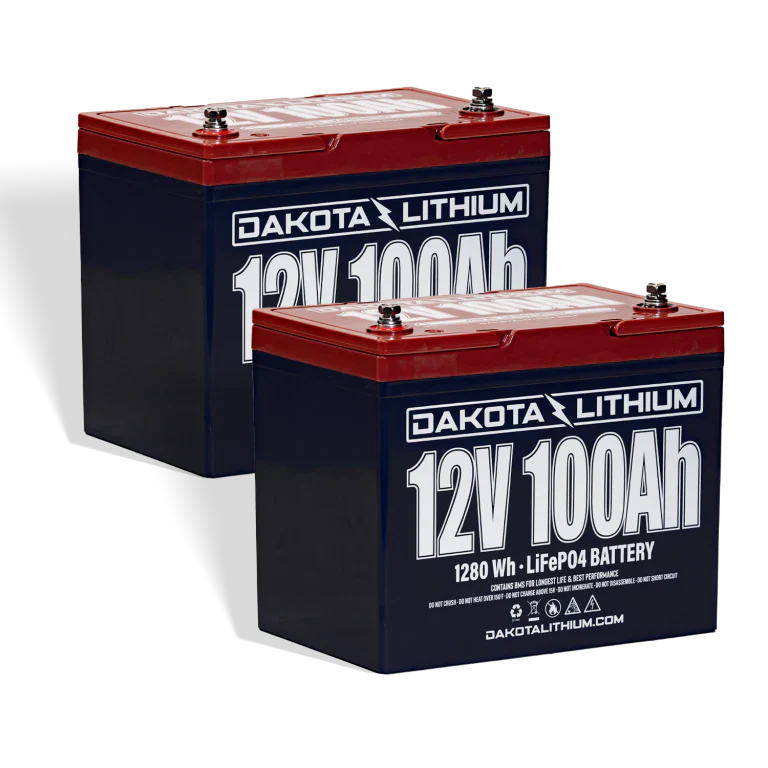

This 24V battery package combines two of our award winning DL 100Ah batteries in series, giving you the power to fish from morning to night. 100 Amp hours (Ah) of capacity is optimal for larger 24V trolling motors and marine environments where you need lots of power for a long time.
Built Dakota tough, this 24V (volt) lithium trolling motor battery package gives you the power to fish from morning to night. Engineered with Lithium Iron Phosphate (LiFePo4) technology this battery set has twice the power, half the weight, and lasts 8 times longer than a sealed lead acid battery - providing exceptional lifetime value. Backed up by a best in class 11 year warranty. 100 Ah (Amp hours) of capacity is optimal for larger 24V trolling motors. Ideal for deep cycle applications in marine environments where you need lots of power for a long time. Add a Connect-Ease trolling motor connection kit for hassle free charging and installation.
11 Year Warranty
World beating, best in class, eleven year manufacturer defect warranty.
Storage Capacity
100 ampere hours (Ah). Dakota Lithium batteries provide consistent power for all 100 amp hours. DL LiFePO4 batteries have a flat voltage curve, which means they have a steady power output as the battery discharges. The power output will not dramatically drop like similar sized SLA batteries. You get all the juice down to the last drop.
Voltage
25.6V (two 12.8V batteries to be wired in series)
Energy
1280 Watts (Wh) per battery
Terminals
F12 terminals (posts that screw in). Easy to adapt to different connection needs. (Max torque 15 ft. lbs.)
Size
10.23"L x 6.60"W x 8.66"H (260mm x 169mm x 215mm) (220mm to top of terminal) Group 24 equivalent.
Weight
27.55 lbs (12.5Kg). That's 60% lighter than a SLA battery.
Lifecycles (battery lifespan)
Up to 80% capacity for 5,000 cycles in recommended conditions. The typical SLA has 500 cycles. Dakota Lithium batteries last so long that the price per use is a fraction of traditional batteries.
Operating temperature
Ideal for rugged & harsh environments. Much better than SLA or other lithium’s. -20'F min, +120'F max optimal environmental operating temps
Discharge
100 A max continuous, 200 A max pulse 10 second pulse. The flat discharge voltage curve provides a 75% bigger capacity then a SLA 100Ah battery.
Charge
50 A max, 14 V max recommended, 15 V max. A SLA charger may work, but will reduce performance and lifespan of the battery.
Includes draft BMS protection
Contains a circuit that handles cell balancing, low voltage cutoff, high voltage cutoff, short circuit protection and temperature protection for increased performance and longer life.

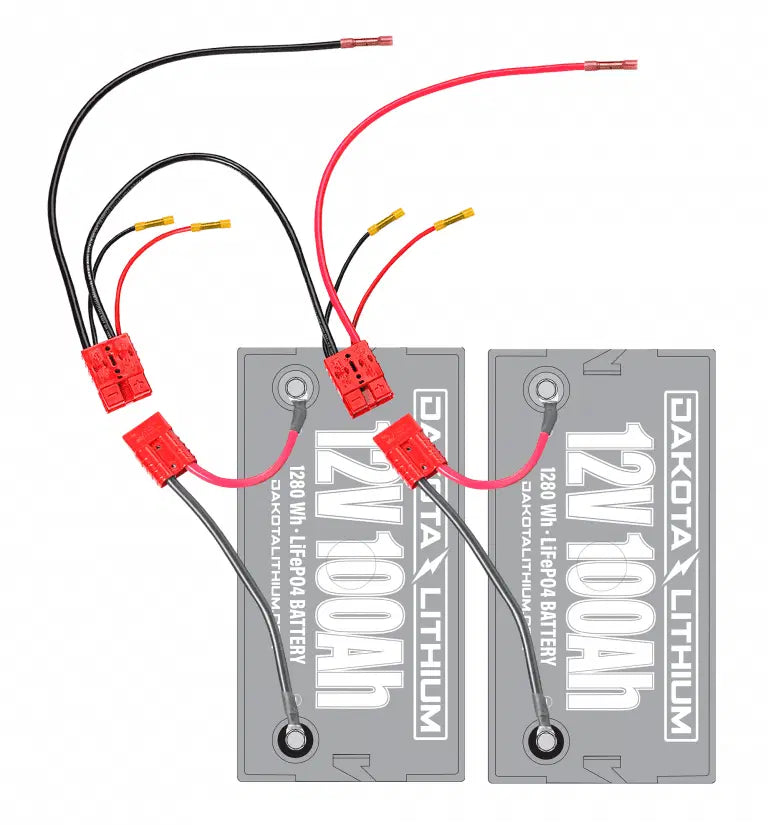

Connect Ease Wiring Kit Reccomended
This battery package is a set of 12V batteries to be wired in series. Connect ease wiring kits provide easy installation and quick removal for charging.
