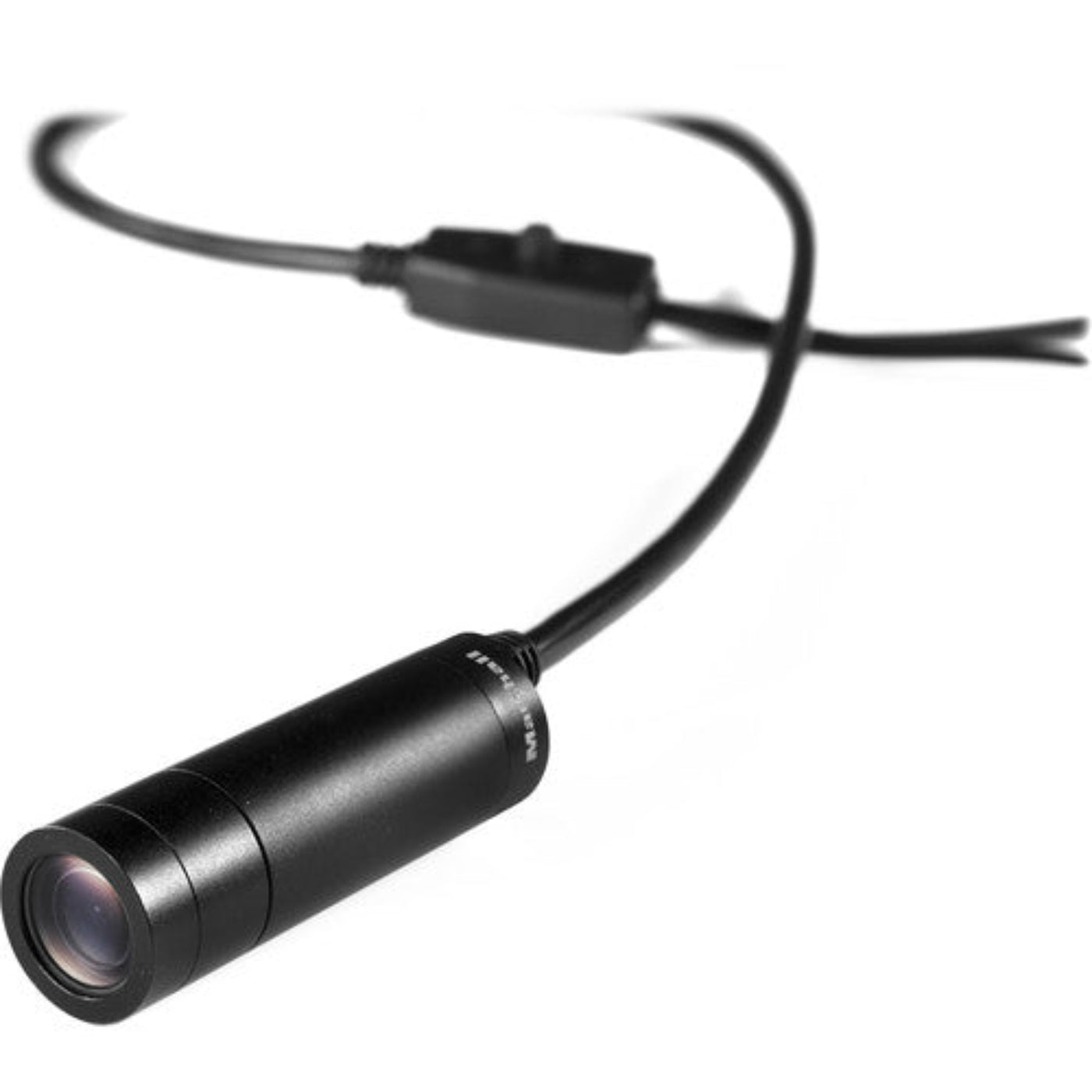

Marshall Pro Series 2.5MP Full HD Weatherproof Lipstick Camera - CV225M
Features
- 1/3" 2.5MP CMOS sensor
- IP67 weatherproof camera
- 3G/HD-SDI connections via BNC
- OSD joystick on cable assembly
- 1/3" 2.5MP CMOS sensor
- 16:9 native aspect ratio
- 3.7mm MP M12 mount lens (interchangeable)
- IP67 weatherproof camera enclosure with 1/4"-20 mounting options on rear panel
- 0.76" cylinder
- 3G/HD-SDI connections via BNC
- Modes: Auto/Manual White Balance, Exposure, Gamma, Red/Blue Gain, Black Levels (Pedestal)
- Supports Wide Dynamic Range (ACCE), Digital Noise Reduction (DNR), DigitalDefog, and HLC
- OSD joystick on cable assembly
What our Experts Think
-
Crisp Full HD Video – Delivers 2.5MP 1080p resolution with clear, detailed imaging that outperforms standard HD in camera clarity and color reproduction.
-
Rugged Weatherproof Build – Designed for outdoor and demanding environments, with durable housing and reliable performance in rain, dust, and extreme conditions.
-
Compact “Lipstick” Form Factor – Small and versatile for tight installations while still offering wide field coverage.
-
Professional‑Grade Imaging – Excellent low‑light performance and consistent exposure make it suitable for security, surveillance, and machine vision applications.
-
Wide Compatibility – Works seamlessly with DVRs, recorders, and monitoring systems supporting CVBS/HD‑TVI/AHD/3G‑SDI (model‑dependent), offering flexible integration.
Q&A
Q: What does this module do?
A: It adds two independent 3G/HD/SD‑SDI outputs to compatible MD‑series camera‑top monitors by converting the monitor’s HDMI input to SDI.
Q: Which monitors is it compatible with?
A: Works with Marshall V‑LCD56MD, V‑LCD70MD, and V‑LCD90MD camera‑top monitors with modular slots.
Q: What signal standards are supported?
A: Outputs support 3G‑SDI / HD‑SDI / SD‑SDI, ideal for broadcast‑level workflows.
Q: Is it HDCP compliant?
A: Yes — HDCP compliance ensures protected HDMI sources can be converted.
Q: Can I use it for live production?
A: Absolutely — dual SDI outputs allow simultaneous feeds to monitors, recorders, switchers, or other SDI devices.
Q: Does it support 480p video?
A: It does not support 480p resolution.
Q: Who is this module for?
A: Ideal for videographers, broadcast crews, and production teams needing reliable, professional SDI outputs from HDMI sources in the field.
Q: What’s a key benefit?
A: Compact plug‑in design expands modular monitors with flexible broadcast‑ready SDI distribution without extra converters.
Maintenance Tips
-
Clean Lens Regularly – Use a soft, lint-free cloth to avoid scratches.
-
Check Housing Seals – Ensure weatherproof seals are intact to prevent moisture ingress.
-
Avoid Direct Sunlight Exposure – Prolonged sun can affect image sensor performance.
-
Secure Mounting – Confirm bracket and screws are tight to prevent misalignment.
-
Use Stable Power Supply – Prevent voltage fluctuations to protect electronics.
-
Keep Cables Organized – Avoid sharp bends or tension on power and video cables.
-
Firmware Updates – Periodically check for updates to maintain image quality and stability.
-
Inspect for Damage – Regularly check housing and lens for cracks or debris buildup.
