Marshall Quad View 17 inch native resolution. 4K quad 3GSDI (IMD) - QVW-1708-3G

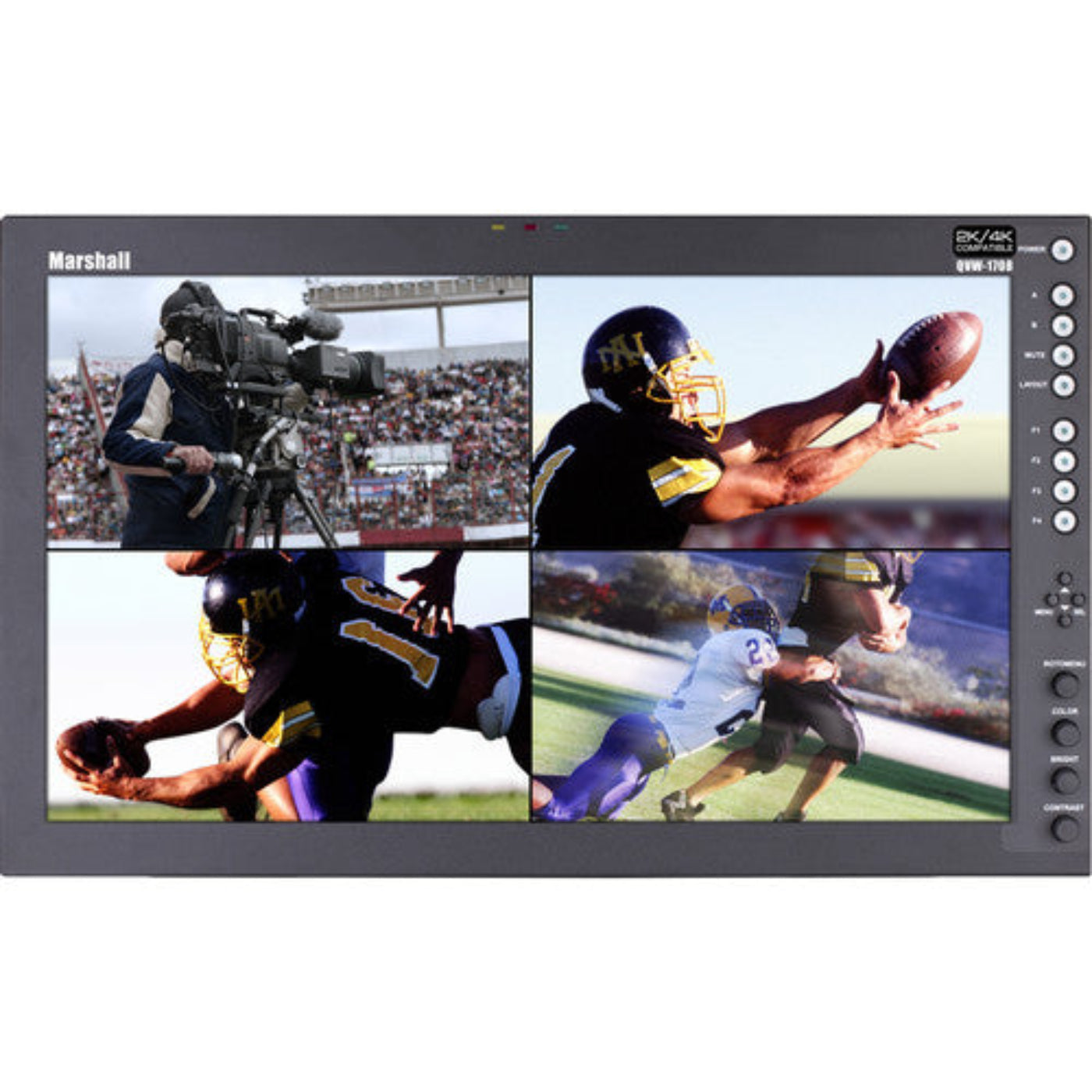

The QVW-1708-3G is part of Marshall Electronics' Quad Viewer series of rack mount monitors which can function as a single display supporting inputs up to 4K or four separate displays in Quad View mode supporting inputs up to 1920 x 1080 in each quadrant.
• Convenient, intuitive front panel controls in addition to control via network

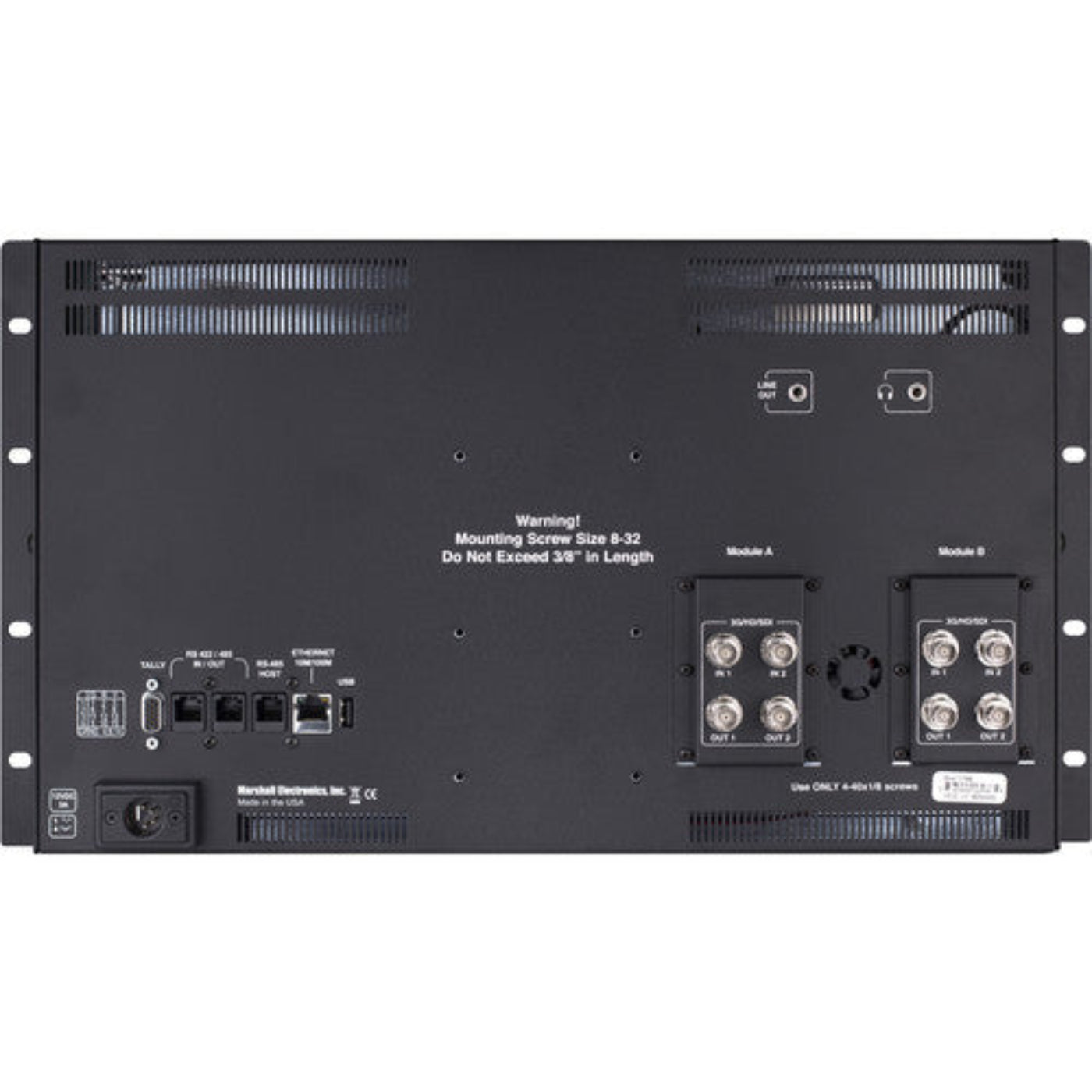

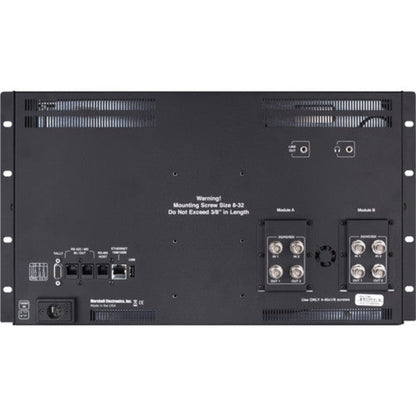

• Quad 3GSDI inputs with active loop-through and auto format detection
The QVW-17083-3G can be mounted in any standard EIA 19-inch equipment rack. The attached rack ears can be angled to provide the user control over the viewing angle. A VESA standard 75mm hole pattern also allosws custom mounting installations.
- Native 1920 x 1080 display (16:9)
- Network control via Ethernet
- 1920 x 1080 Native Display (16 x 9)
- Accepts Input Resolutions Up to 4096 x 2160
- IMD - In Monitor Display Functions
- Area Markers
- Hard Tally + Soft Tally
- Network Control via Ethernet
- Presence indicators for TC, CC (608/708), Audio
- Bar Display for Embedded Audio, also Timecode Display
- RS-485 in/out/host ports allow daisy-chaining IMD and display functions
- Pixel-to-Pixel Mode
- Compatible with CalMAN 5 Calibration Technology
- IMD Control via Ethernet or RS-485 serial data
- Status Display Shows True Format / Frame Rate
- Rack Ears Included
- In-field firmware update
What our Experts Think
-
High‑value quad monitoring for multi‑source workflows
Marshall Electronics QVW‑1708‑3G 17″ Quad View Monitor displays four HD/SD signals simultaneously or accepts linked 3G‑SDI for full UHD/4K input, making it ideal for live production, OB vans, control rooms, and post‑production monitoring.
-
True Full HD panel with broad format support
Native 1920 × 1080 resolution on a 17.3″ display ensures clear confidence monitoring, while the unit accepts resolutions up to 4096 × 2160, scaling inputs without external converters.
-
Advanced IMD tools streamline signal oversight
In‑Monitor Display (IMD) provides on‑screen labels, tally, area markers, and embedded audio/timecode indicators—critical for operators tracking multiple feeds.
-
Flexible layout configurations
Experts praise the ability to switch between quad view and single full‑screen modes, letting users adapt the display to task needs without external switching hardware.
-
Robust pro‑AV connectivity & control
Quad 3G‑SDI inputs with active loop‑through, plus Ethernet and RS‑485 control, support integration into complex broadcast and AV systems.
-
Useful technical assists for precision workflows
Built‑in pixel‑to‑pixel mode, color temperature presets, blue‑only mode, hard/soft tally, and audio bars help colorists and engineers evaluate signals accurately.
-
Rack‑mount design with flexible installation
Includes rack ears and VESA options, allowing tilt adjustments and integration into standard equipment racks or custom installations.
Q&A
Q1: What is the Marshall QVW‑1708‑3G?
A: A professional 17.3″ rack‑mount quad view monitor that displays up to four 3G‑SDI video feeds simultaneously or a single 4K signal.
Q2: What resolution does it offer?
A: It has a native 1920 × 1080 Full HD display with support for input resolutions up to 4096 × 2160 (4K).
Q3: What video inputs/outputs are available?
A: Includes 4× 3G‑SDI inputs with active loop‑through and 4× 3G‑SDI outputs, plus network and control ports.
Q4: What is Quad View mode?
A: Quad View allows viewing four separate video sources at once on one screen, ideal for multi‑camera monitoring.
Q5: What is IMD (In‑Monitor Display)?
A: IMD shows embedded audio levels, timecode, format/frame info, and tally directly on the screen for live production confidence.
Q6: Does it support network control?
A: Yes, it offers Ethernet and RS‑485/RS‑422 control for remote adjustment and IMD control.
Q7: What professional features are included?
A: Features pixel‑to‑pixel mode, area markers, closed caption support, blue‑only mode, and presence indicators for TC/CC/audio.
Q8: Can it be mounted in racks?
A: Yes, it comes with rack ears and VESA mounting for flexible installation.
Maintenance Tips
-
Clean Display Safely: Use a microfiber cloth to remove dust and fingerprints from the 17" 4K quad-view screen without scratching.
-
Avoid Pressure on Screen: Prevent panel damage and maintain color accuracy by not pressing the display.
-
Ensure Proper Ventilation: Keep airflow around the monitor to avoid overheating during long monitoring sessions.
-
Stable Power Supply: Use a reliable source to prevent flickering or hardware damage.
-
Check SDI Connections: Inspect all 3G-SDI inputs regularly to ensure stable signal routing for multiple video feeds.
-
Calibrate Display Regularly: Maintain accurate quad-view color, brightness, and scaling for professional broadcast monitoring.
-
Firmware Updates: Keep the monitor updated to support latest formats and improve stability.
-
Protect from Dust & Moisture: Operate in a controlled studio environment to extend lifespan.
-
Secure Mounting: Ensure stable installation on desk, rack, or tripod to prevent vibrations affecting video clarity.
-
Power Down Properly: Turn off safely after use to protect internal electronics.
