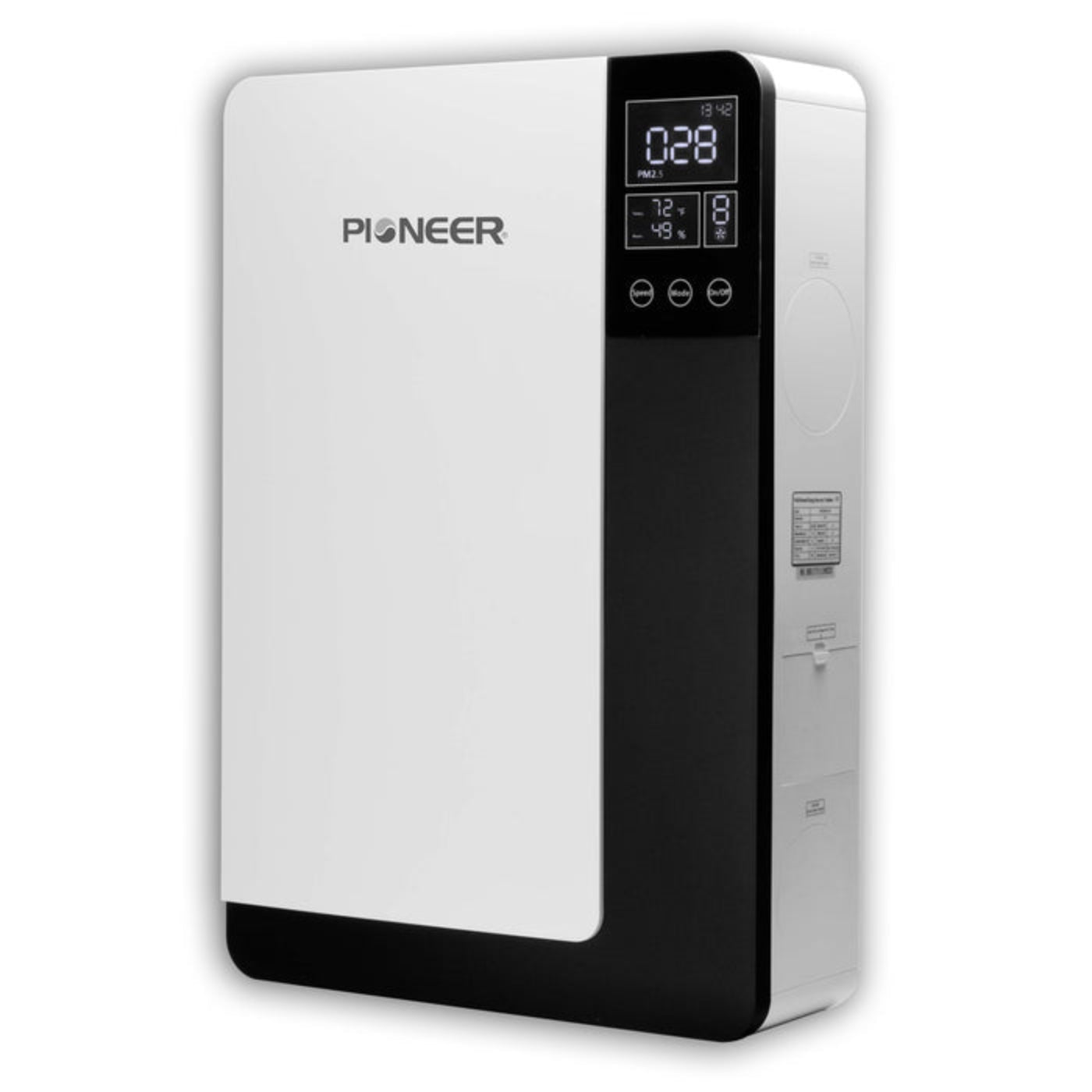

Pioneer ECOasis 150 Ductless Wall-Mounted Single-Room Wi-Fi Energy Recovery Ventilator - ERV150AHRPM25L
Elevate your home's air quality with the innovative Pioneer® ECOasis 150 Ductless Energy Recovery Ventilator. Designed to address the most demanding indoor air quality needs, this cutting-edge system incorporates a PM2.5 sensor, comprehensive air filtration, and an 82% efficiency heat exchanger to deliver a remarkable 99% purification efficiency. The ECOasis 150 is your solution for maintaining a healthy, comfortable indoor environment, equipped with built-in WiFi and a user-friendly touch screen panel for effortless control and monitoring. This versatile and efficient unit is ideal for room sizes ranging from 200 to 500 square feet, ensuring optimal air quality in your living space.
Features
PM2.5 Indoor Air Quality Monitoring: Integrated PM2.5 sensor to continuously assess and control indoor air quality, complemented by temperature and humidity sensors.
High Efficiency & Purification: Boasts an 82% efficiency heat exchanger alongside a 99% air purification efficiency, utilizing advanced PM2.5 control and Indoor Air Quality (IAQ) monitor.
Connectivity and Control: Built-in WiFi for easy remote management through a smartphone app, alongside a touch screen panel and wireless remote controller for comprehensive control options.

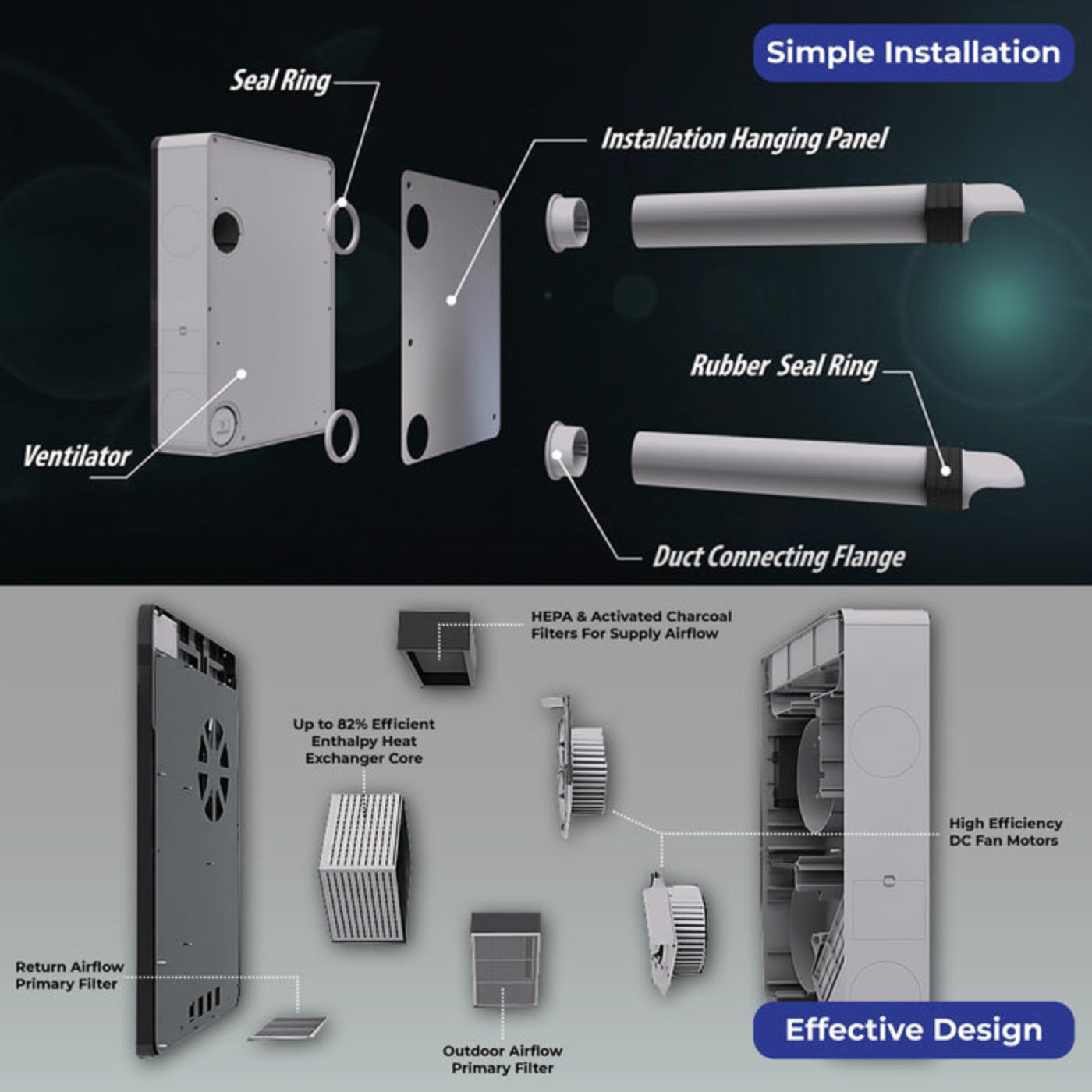

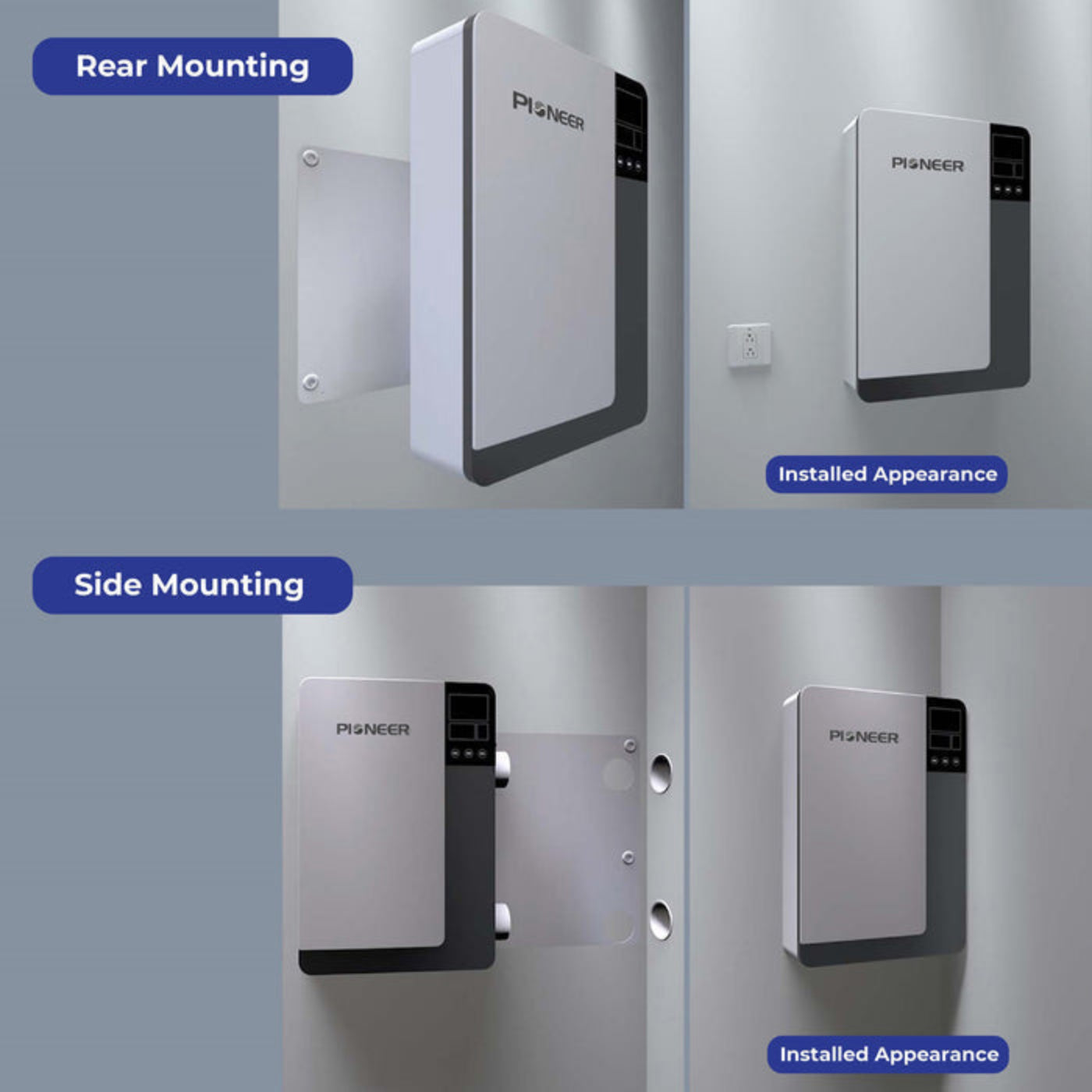

Flexible Installation: Wall mountable with options for side or rear connection, accommodating various room layouts and designs.

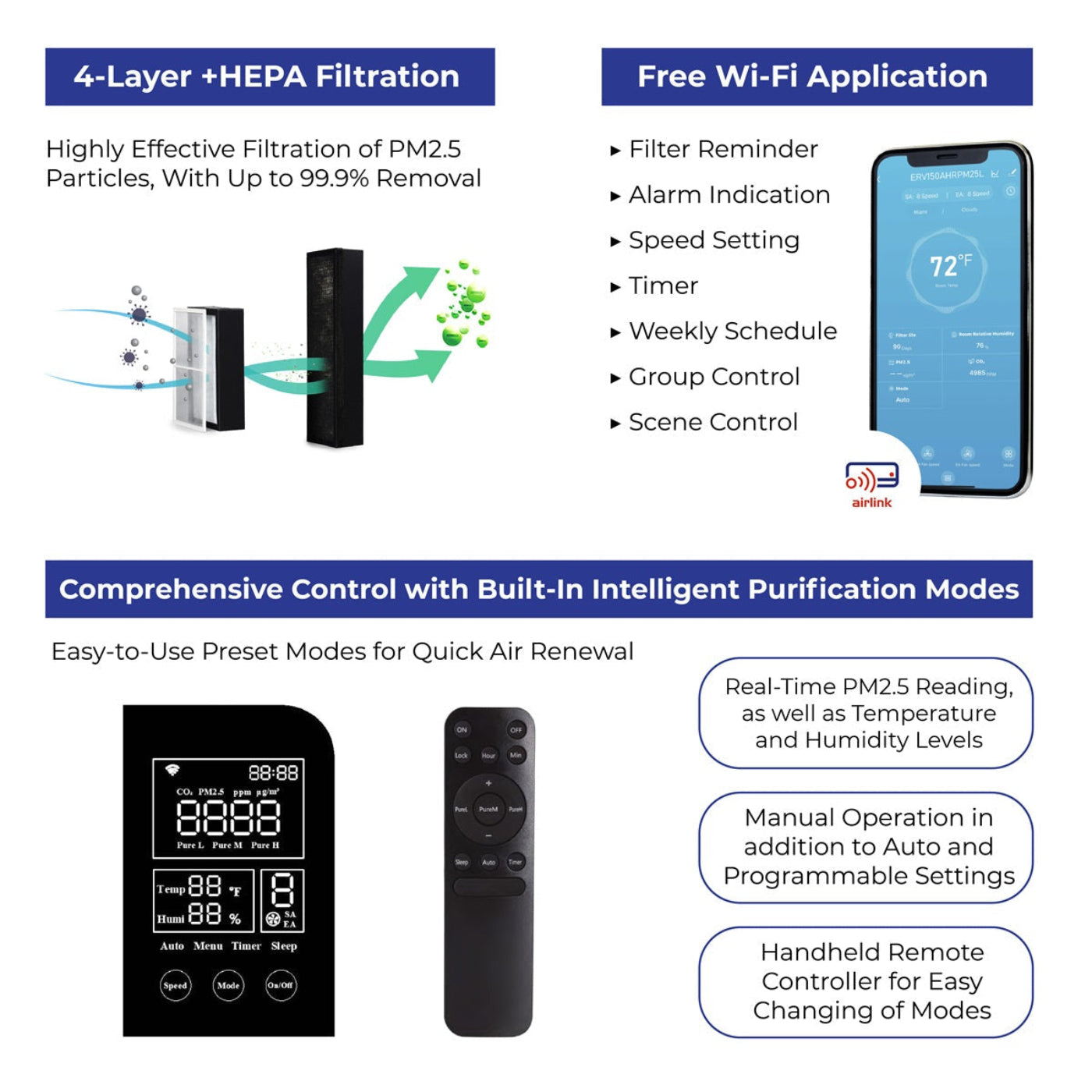

Enhanced Filtration System: Includes four filters (OA Primary, RA Primary, PM2.5 filter, and Activated Charcoal Hepa H10 filter) to comprehensively remove contaminants and ensure fresh air delivery.
Quiet and Powerful Operation: Ultra-low sound levels ranging from 23 to 37.9 dB(A) with an 8-speed fan, capable of delivering up to 88 CFM of airflow for effective room coverage.
Energy Efficient: Low power consumption with only 35W input power, making it an eco-friendly choice for your home.
Design and Maintenance: Features an award-winning, compact, and slim casing for aesthetic integration into any room, with easy installation and maintenance procedures.
Specifications
| Power Supply |
110/120 VAC |
| Input Power |
35 W |
| Dimensions (W × D × H) |
17-3/4 × 6-1/8 × 26 in. |
| Product Weight |
22 lbs |
| Airflow |
Up to 88 CFM |
| Sound Level |
23–37.9 dB(A) |
| Method of Control |
Touch Screen Panel; Handheld Remote; Smartphone App |
| Filters |
OA Primary; RA Primary; PM2.5; Activated Charcoal HEPA (H10) |
| Suggested Room Size |
200 – 500 sq. ft. |
| Room Size Suitability |
200 – 500 sq. ft. |
| Ambient Operating Temperature Range |
5°F – 104°F |
Documentation
What our Experts Think
-
Fresh air + energy recovery (best of both worlds)

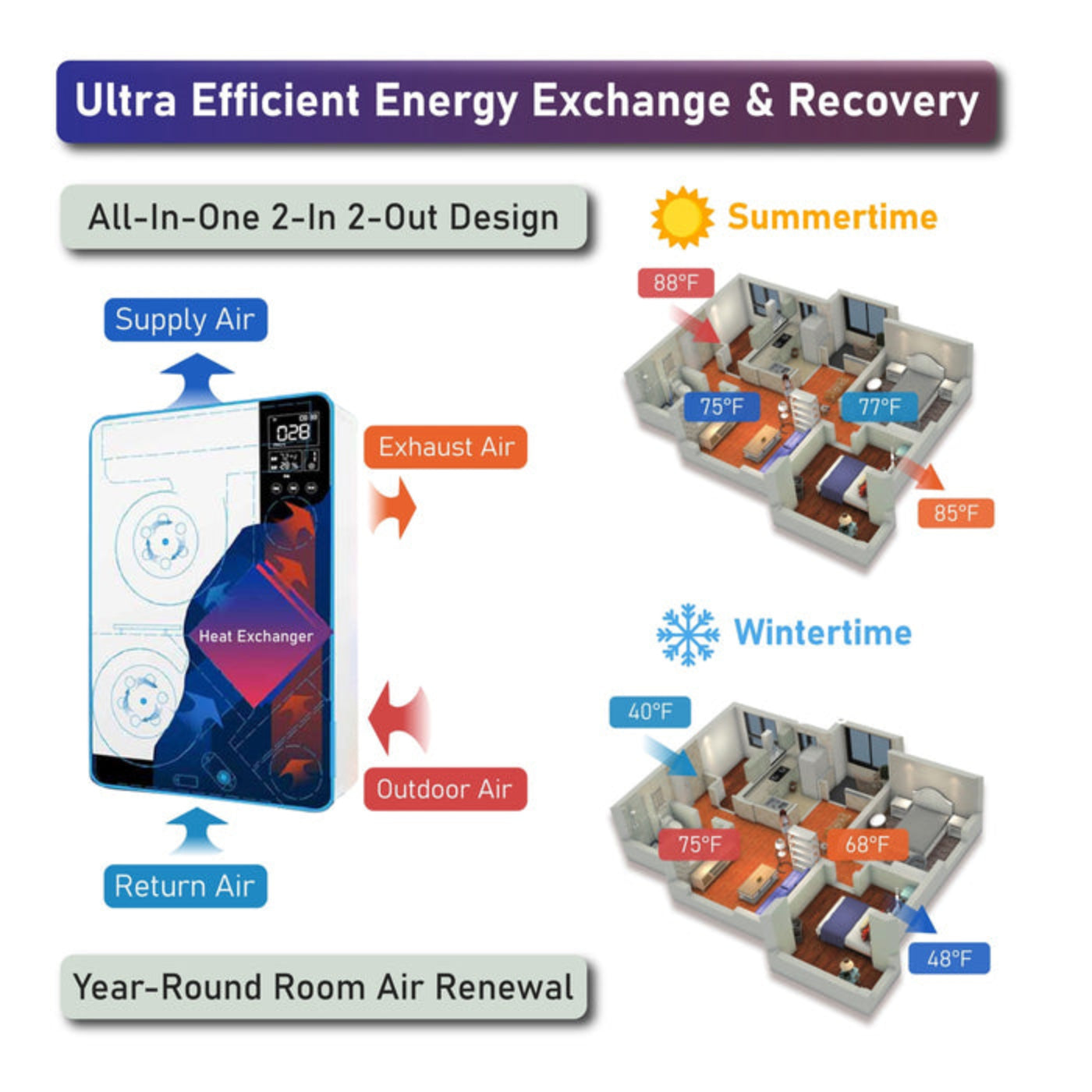

Unlike standard ventilators, this ERV system exchanges stale indoor air with fresh outdoor air while recovering up to 82% of energy, reducing load on your AC/heat pump.
-
Advanced air purification (up to 99%)
Equipped with a multi-stage filtration system (PM2.5 + HEPA + activated carbon), it effectively removes dust, pollutants, and odors—ideal for improving indoor air quality.
-
Smart air quality monitoring built-in
Integrated PM2.5, temperature, and humidity sensors automatically track indoor conditions and adjust ventilation for healthier living spaces.
-
Perfect for modern airtight rooms (200–500 sq. ft.)
Designed for single-room applications, especially well-suited for bedrooms, offices, or energy-efficient homes where airflow is limited.
-
Ultra-low energy consumption (only ~35W)
Delivers continuous ventilation with minimal power usage, making it an eco-friendly upgrade over traditional exhaust fans.
-
Quiet, continuous operation
Runs as low as 23 dB, ensuring fresh air circulation without disrupting sleep or daily activities.
-
Wi-Fi smart control + touchscreen convenience
Offers full control via app, remote, or onboard display, making scheduling and monitoring effortless.
-
Ductless, flexible installation
Wall-mounted design with no ductwork required, making it ideal for retrofits, apartments, and renovations.
Q&A
Q: What is the Pioneer ECOasis 150 ERV used for?
A: It’s a ductless energy recovery ventilator (ERV) designed to bring in fresh outdoor air while exhausting stale indoor air—improving indoor air quality and ventilation efficiency.
Q: Is this ERV suitable for single rooms?
A: Yes, it’s specifically designed for single-room applications such as bedrooms, offices, and small living spaces.
Q: Does it support Wi-Fi and smart control?
A: Yes, built-in Wi-Fi allows remote control, scheduling, and monitoring via a smartphone app.
Q: How does energy recovery ventilation work?
A: The ERV transfers heat and moisture between incoming and outgoing air, maintaining indoor temperature while improving ventilation and reducing energy loss.
Q: What airflow capacity does the ECOasis 150 provide?
A: Offers airflow up to 150 m³/h, ensuring efficient air exchange for improved comfort and air freshness.
Q: Is this unit energy efficient?
A: Yes, it’s designed for high efficiency by minimizing heat loss and reducing HVAC workload, making it cost-effective long-term.
Q: How noisy is the unit during operation?
A: Engineered for quiet performance, making it suitable for bedrooms and workspaces without disturbance.
Q: What are the installation requirements?
A: Wall-mounted, ductless design with a through-wall installation—no complex ductwork required.
Q: Does it help with humidity control?
A: Yes, it helps balance indoor humidity by transferring moisture between incoming and outgoing air streams.
Maintenance Tips
-
Clean or replace air filters every 1–3 months – Maintains fresh airflow and optimal energy recovery efficiency
-
Inspect and clean heat exchange core every 6–12 months – Ensures maximum heat & humidity transfer performance
-
Keep exterior intake/exhaust vents clear – Prevents airflow restriction from dust, leaves, or debris
-
Wipe indoor unit vents regularly – Improves air quality and consistent airflow output
-
Check condensate drainage (if applicable) – Avoids moisture buildup and potential damage
-
Use Wi-Fi smart controls efficiently – Adjust ventilation schedules to reduce energy consumption
-
Inspect duct connections & seals periodically – Prevents air leakage and maintains efficiency
-
Schedule annual professional servicing – Ensures long-term performance and balanced ventilation
