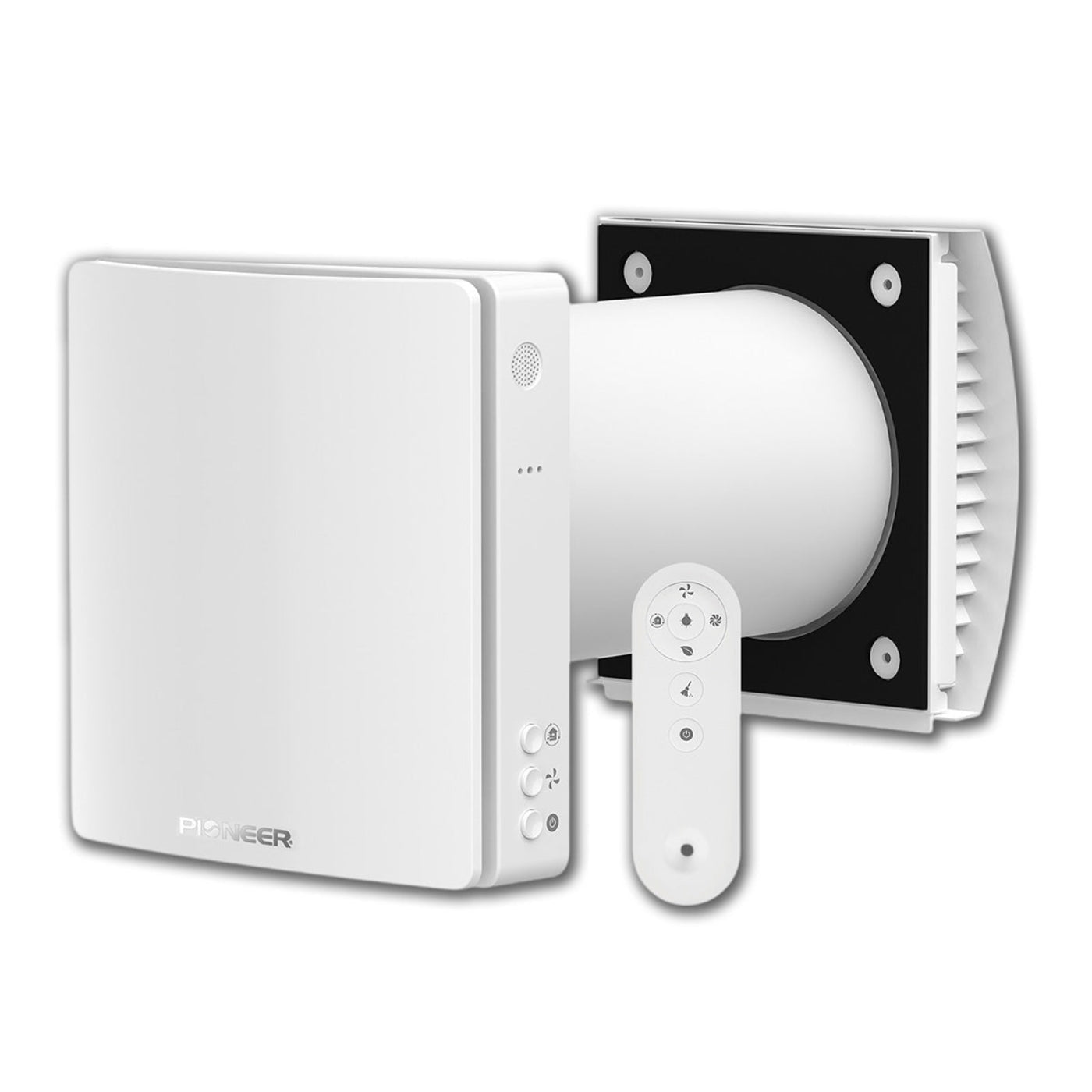

Pioneer ECOasis 50 Ductless Wall-Mounted Single-Room Wi-Fi Energy Recovery Ventilator - ERV050AHRMCO2L
With its compact design and highly integrated appearance, Pioneer's wall-mounted Energy Recovery Ventilator (ERV-50) system offers the most energy-efficient way of renewing the air inside your home. This lightweight system neatly recesses within the wall and intelligently exchanges stale indoor room air with fresh, clean outside air - all the while filtering out and reducing unhealthy indoor air contaminants. Not only that, but the internal high-tech ceramic energy accumulator housed within also offers a heat recovery efficiency of up to 97% - ensuring that the comfortable room temperature inside is neither raised nor lowered by the temperature of the air outside which could be wildly different.
Easily installed and operated, the 50 Series ERV reliably ensures year-round elimination of air pollutants and impurities, while delivering optimum indoor air quality. Breathe life into your home with delightfully crisp, fresh air today!
-
Ultra High Efficiency ECOasis ERV-rm Series Ductless Energy Recovery Ventilation System with 97% Heat Recovery
-
Minimal Energy Consumption with an Average Power draw of only 8W
-
Wall-Mounted with Variable Length Air Channel Duct to Suit Different Wall Thicknesses
-
Large Volume Air Output with Up to 35 CFM of Treated Airflow
-
Washable & Re-usable Integrated Prefilters, along with F7 (MERV13) Filter
-
Wi-Fi Controlled via Free Smartphone App (along with Standard Controller)
-
Rainproof Design with Hooded and Angled Outdoor Cover
-
Super-Silent Operation with a Maximum Sound Output of 32.7 dB(A)
Features
-
Remove Room Air Pollutants: Filtration of air impurities such as MVOCs (Microbial Volatile Organic Compounds) along with removal of dust and other contaminants that commonly cause coughing, fatigue, and allergy aggravation
-
Freshen and Renew Breathing Air: Extraction of stale and stuffy room air while simultaneously introducing fresh outdoor air into the room to improve oxygen levels and overall quality of life
-

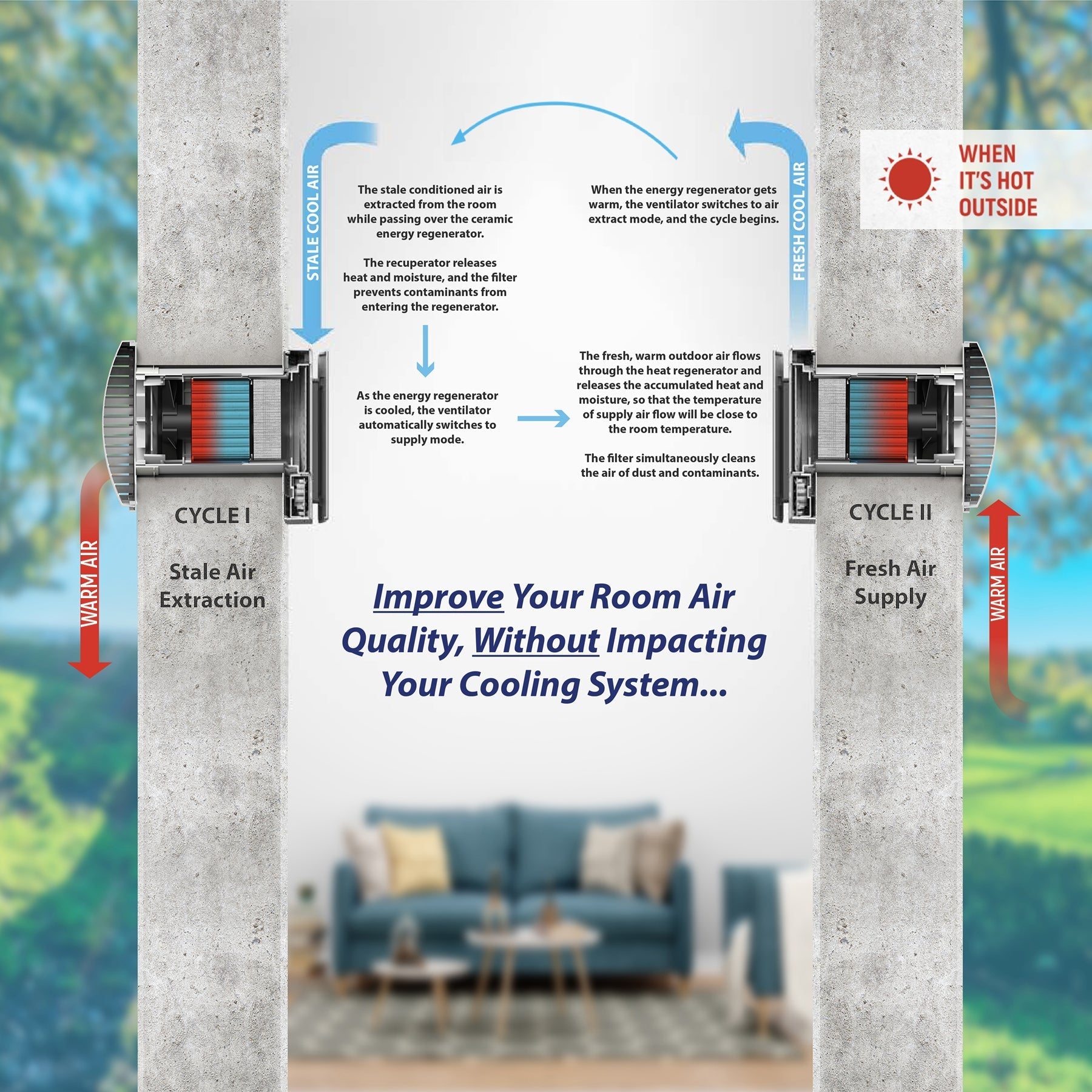

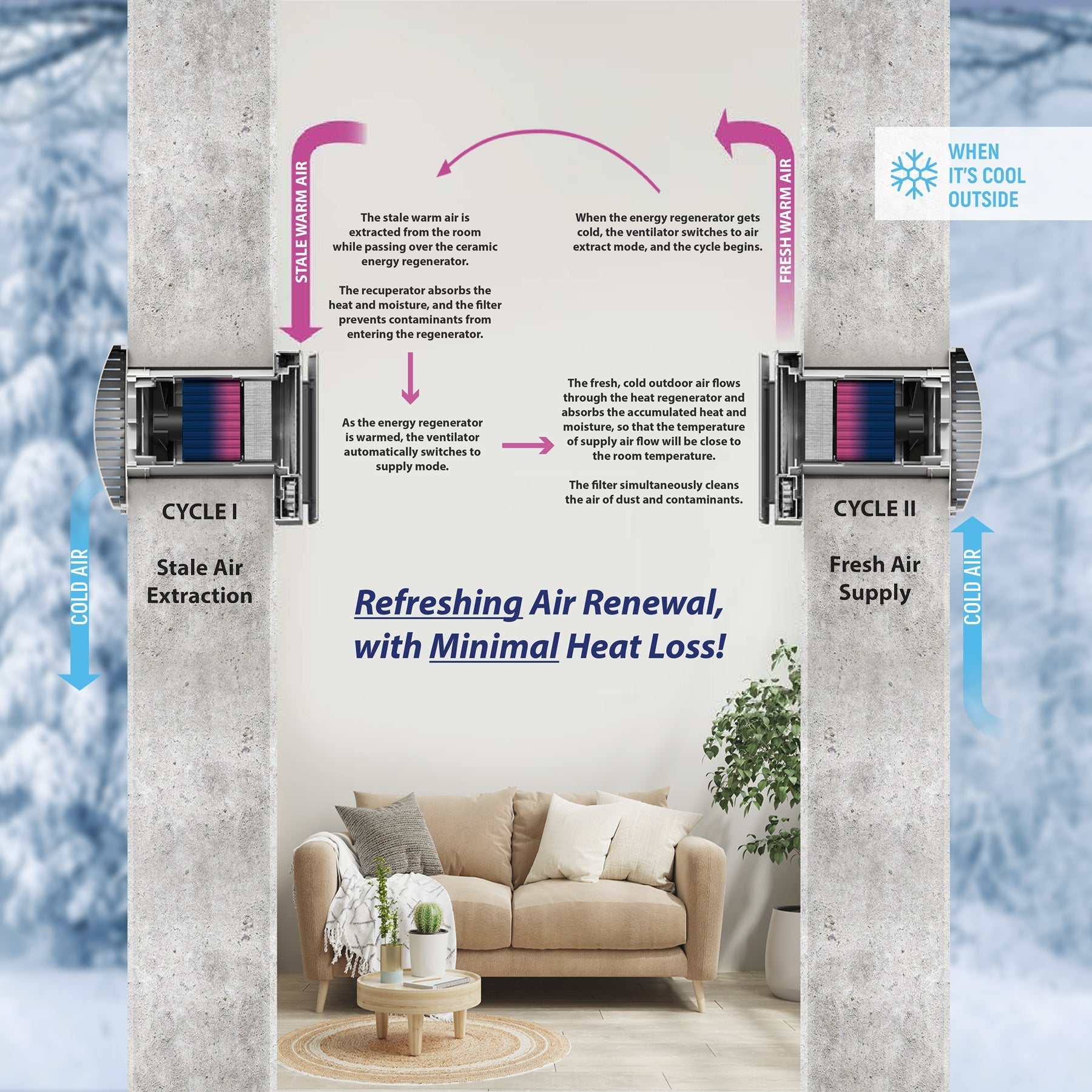

Minimize Strain on the Home Heating or Cooling System: By cooling the incoming hot outside air in summertime, and heating the incoming cold outside air in wintertime, the system intelligently prevents a change in indoor air temperature by using that outgoing stale indoor air to preheat or precool the incoming outdoor air depending on the season (Recommended to install two 50 Series ERVs to take advantage of this benefit)
-
Continuously Monitor Air Quality: A built-in CO2 sensor allows automated management of oxygen & CO2 levels inside the room to maximize breathability
Specifications
| Power Supply |
110–240 VAC (50–60 Hz) with plug-in power cord |

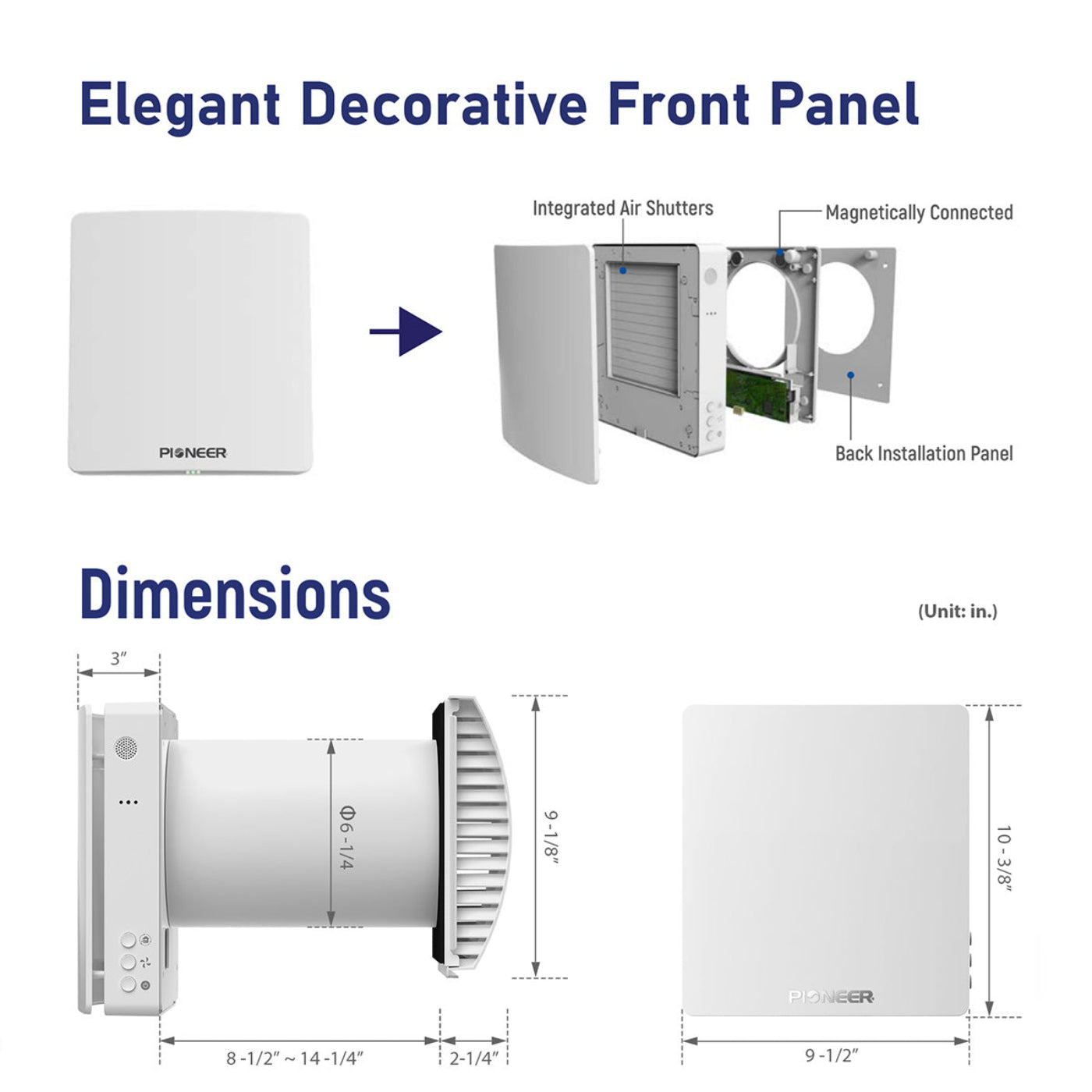

| Dimensions (W × D × H) |
9-3/8" × 19-3/8" × 10-3/8" |
| Product Weight |
11 lbs |
| Airflow w/ F7 Filter (Lo / Med / Hi / Max) |
11.8 / 23.5 / 29.4 / 35.3 CFM |
| In-Wall Channel Span |
8-1/2" – 14-1/8" |
| Diameter of Air Duct |
6-1/4" |
| Input Power (Lo / Med / Hi) |
6 / 7 / 8 W |
| Water-Resistance Rating |
IPX4 |
| Method of Control |
Onboard interface; handheld remote; smartphone app |
| Suggested Room Size |
Up to 300 sq. ft. |
| Ambient Operating Temperature Range |
−4°F – 122°F |
Documentation
What our Experts Think
-
The Pioneer ECOasis 50 Energy Recovery Ventilator brings fresh outdoor air into rooms while expelling stale air, recovering up to ~97% of thermal energy to keep indoor temperatures stable and reduce HVAC strain.
-
Superior indoor air quality (IAQ)
Multiple filters including washable prefilters + F7 (MERV‑13) capture dust, pollutants, and microbial compounds for cleaner breathing air.
-
Smart and intuitive control
Built‑in Wi‑Fi enables remote operation via smartphone app plus standard remote and onboard interface for easy monitoring and adjustments.
-
Built‑in CO₂ monitoring
Automatically tracks indoor CO₂ and oxygen levels to adjust ventilation for healthier air quality.
-
Low‑energy, silent operation
Runs on ~8–12 W and maintains quiet performance (~32.7 dB)—efficient, unobtrusive ventilation.
-
Compact, adaptable wall‑mount design
The ductless wall‑mounted unit fits various wall thicknesses with a telescoping channel and is suitable for spaces up to ~300 sq ft.
-
Year‑round comfort enhancement
By pre‑conditioning incoming air (pre‑cooling warm air in summer & pre‑heating cold air in winter), it reduces HVAC workload and helps maintain a comfortable environment.
Q&A
Q: What is the Pioneer ECOasis 50 ERV designed for?
A: It’s a ductless energy recovery ventilator (ERV) for single-room applications, improving indoor air quality by exchanging stale indoor air with fresh outdoor air.
Q: Does it support Wi-Fi and smart control?
A: Yes, built-in Wi-Fi allows remote operation, scheduling, and monitoring via a smartphone app.
Q: How does energy recovery work in this unit?
A: Transfers heat and moisture between incoming and outgoing air streams, maintaining indoor comfort while reducing energy loss.
Q: What is the airflow capacity?
A: Provides up to 50 m³/h airflow, ideal for small rooms such as bedrooms, offices, or compact living areas.
Q: Is the unit energy-efficient?
A: Yes, it minimizes heat loss and reduces HVAC workload, saving energy and lowering operational costs.
Q: How quiet is the ECOasis 50?
A: Engineered for quiet operation, suitable for bedrooms, offices, and workspaces.
Q: Does it help with humidity control?
A: Yes, it balances indoor humidity by transferring moisture between incoming and outgoing air.
Q: What are the installation requirements?
A: Wall-mounted and ductless; requires through-wall installation, eliminating complex ductwork.
Q: Key comfort and usability features?
A: Multi-speed fan settings, energy recovery core, air filtration, Wi-Fi control, and energy-saving operation.
Maintenance Tips
-
Clean or replace air filters every 1–3 months – Maintains fresh airflow and energy-efficient ventilation
-
Inspect and clean the heat exchange core every 6–12 months – Ensures maximum heat and humidity recovery
-
Keep intake and exhaust vents clear – Prevents airflow restriction from dust, leaves, or debris
-
Wipe indoor unit vents regularly – Improves air quality and consistent airflow
-
Check condensate drain line – Avoids moisture buildup and potential water damage
-
Use Wi-Fi smart scheduling – Optimizes ventilation while reducing energy use
-
Inspect duct connections and seals periodically – Prevents air leaks and maintains efficiency
-
Schedule annual professional servicing – Ensures long-term performance and balanced ventilation
