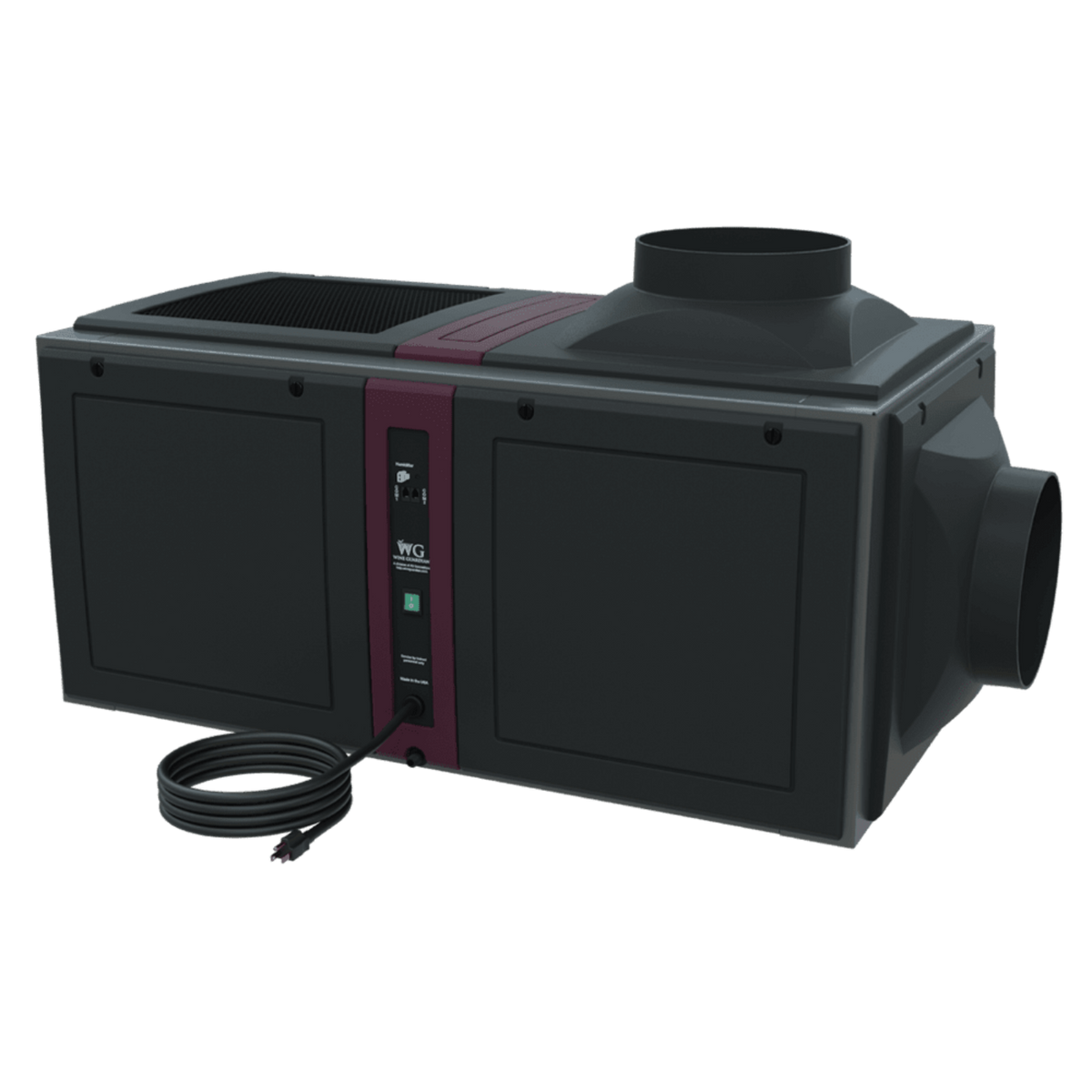

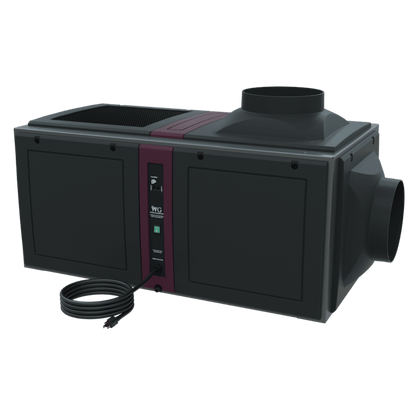

Looking to safeguard your valuable wine collection? The Wine Guardian D050 Ducted Wine Cellar Cooling Unit - 60 HZ is engineered to maintain perfect temperature and humidity levels in medium-sized residential and commercial wine rooms. Operating on a 60Hz system ideal for North American settings, this unit delivers exceptional performance with a cooling capacity of up to 6,320 BTU/h.
The Wine Guardian D050 features a fully-ducted design that minimizes noise and maximizes efficiency. It includes integrated controls for temperature management and can be enhanced with optional add-ons like the Wine Guardian Humidifier for precise humidity control. Whether integrated directly into the unit or as a standalone accessory, the humidifier ensures your wine remains in pristine condition.
Features
High Cooling Capacity: Up to 6,320 BTU/h for spaces from 650 to 3000 cubic feet.
Ducted System: Quiet operation with flexible installation options.
Integrated Controls: All-in-one unit with evaporator, fans, compressor, condenser, and temperature controls.
Optional Humidifier: Ensures ideal humidity levels for wine preservation.
Versatile Application: Suitable for residential and commercial wine cellars.
Available Add-Ons: Compatible with Wine Guardian Humidifiers and other climate protection bundles..
Specifications
Model:
D050
Line Frequency:
60 HZ
Capacity:
2700 – 6320 BTU
Volume:
650 – 3000 ft³
Length:
41.5"
Width:
22.5"
Height:
19"
Weight:
125 lbs
Electrical:
115/1/60
Video
What Our Experts Think
Powerful Cooling for Larger Cellars: The Wine Guardian D050 offers robust cooling for large wine cellars, maintaining precise temperature and humidity control.

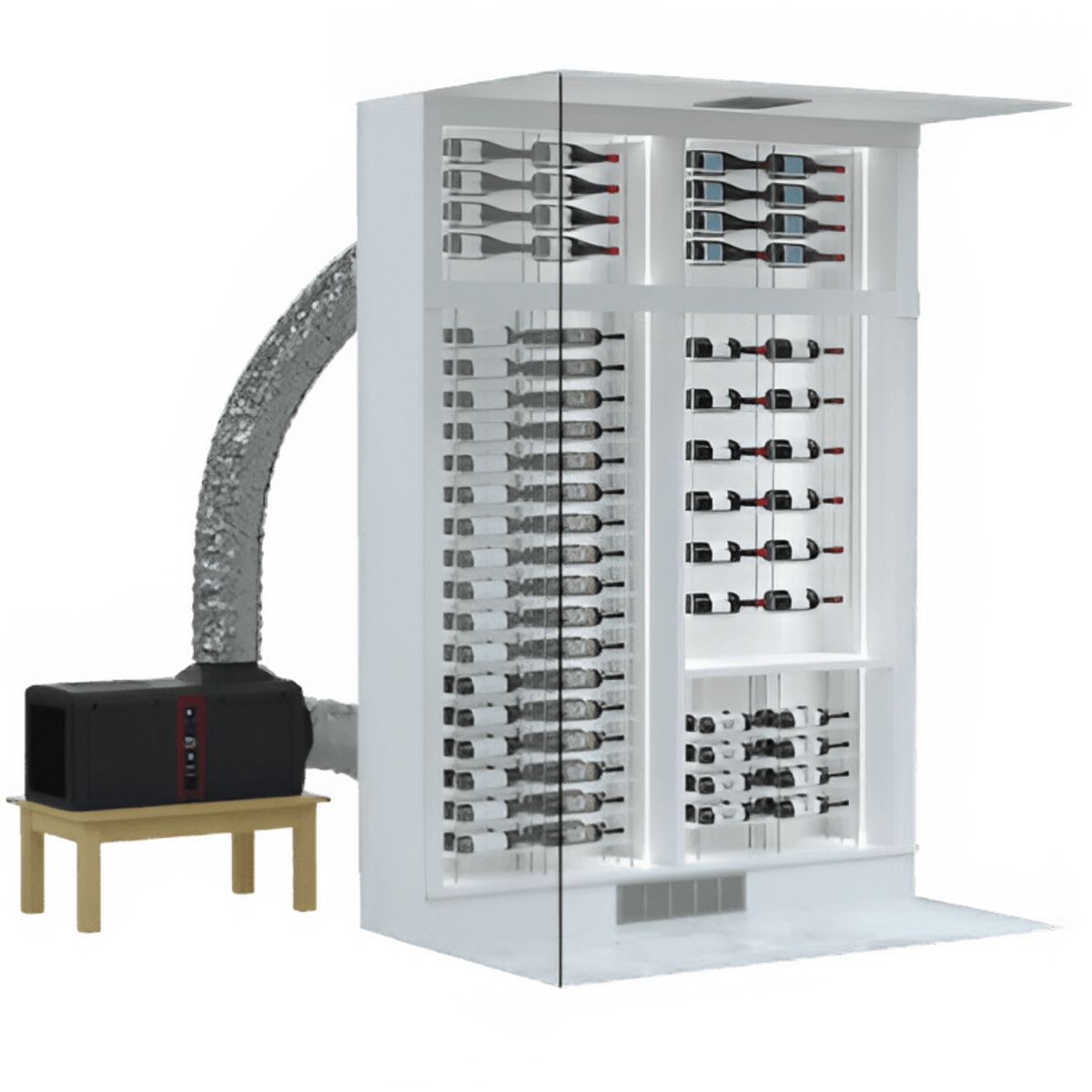

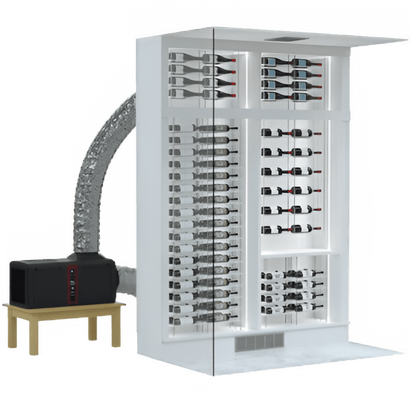

Ducted System: Designed for easy integration with ductwork, providing flexible installation options for custom cellar designs.
Low Noise Operation: Runs quietly, making it ideal for residential or commercial settings where peace and quiet are important.
Energy Efficient: Optimized to deliver powerful cooling while minimizing energy consumption, helping reduce operating costs.
Durable & Reliable: Constructed with high-quality materials, ensuring long-lasting, efficient operation over time.
User-Friendly Controls: Comes with an intuitive control system for easy monitoring and adjustments of temperature and humidity levels.
Q&A
Q: What is the Wine Guardian D050 Cooling Unit? A: The D050 is a ducted wine cellar cooling unit designed to provide precise temperature and humidity control for wine cellars.
Q: What is the cooling capacity of the D050? A: It effectively cools wine cellars up to 2,000 cubic feet in size.
Q: How does it work? A: The D050 features a ducted system that distributes cooled air throughout the cellar, maintaining optimal conditions for wine storage.
Q: Is installation easy? A: Yes, the unit is designed for flexible installation with ducted air supply and return options, making it easy to fit into various cellar configurations.
Q: Does it control both temperature and humidity? A: Yes, the D050 maintains both the ideal temperature and humidity levels to preserve your wine collection.
Q: How quiet is the Wine Guardian D050? A: The D050 operates quietly, making it ideal for both residential and commercial wine cellar setups.
Q: Is it energy efficient? A: Yes, the D050 is designed for energy-efficient operation, delivering reliable performance while minimizing energy use.
Maintenance Tips
Clean Air Filters: Clean or replace the air filters every 1-2 months to ensure efficient airflow and cooling performance.
Inspect Coils: Clean both evaporator and condenser coils annually to prevent dust buildup and maintain system efficiency.
Check Condensate Drain: Ensure the condensate drain line is clear to avoid water backups and potential damage.
Monitor Temperature and Humidity: Regularly check the thermostat and humidity settings to maintain ideal wine storage conditions.
Verify Duct Connections: Inspect ducts for any leaks or blockages to ensure proper airflow and temperature control.
Annual Professional Maintenance: Schedule yearly professional inspections to check refrigerant levels, electrical components, and overall system functionality.
Ensure Proper Airflow: Keep the surrounding area free from obstructions to prevent airflow restrictions and maintain optimal cooling performance.
