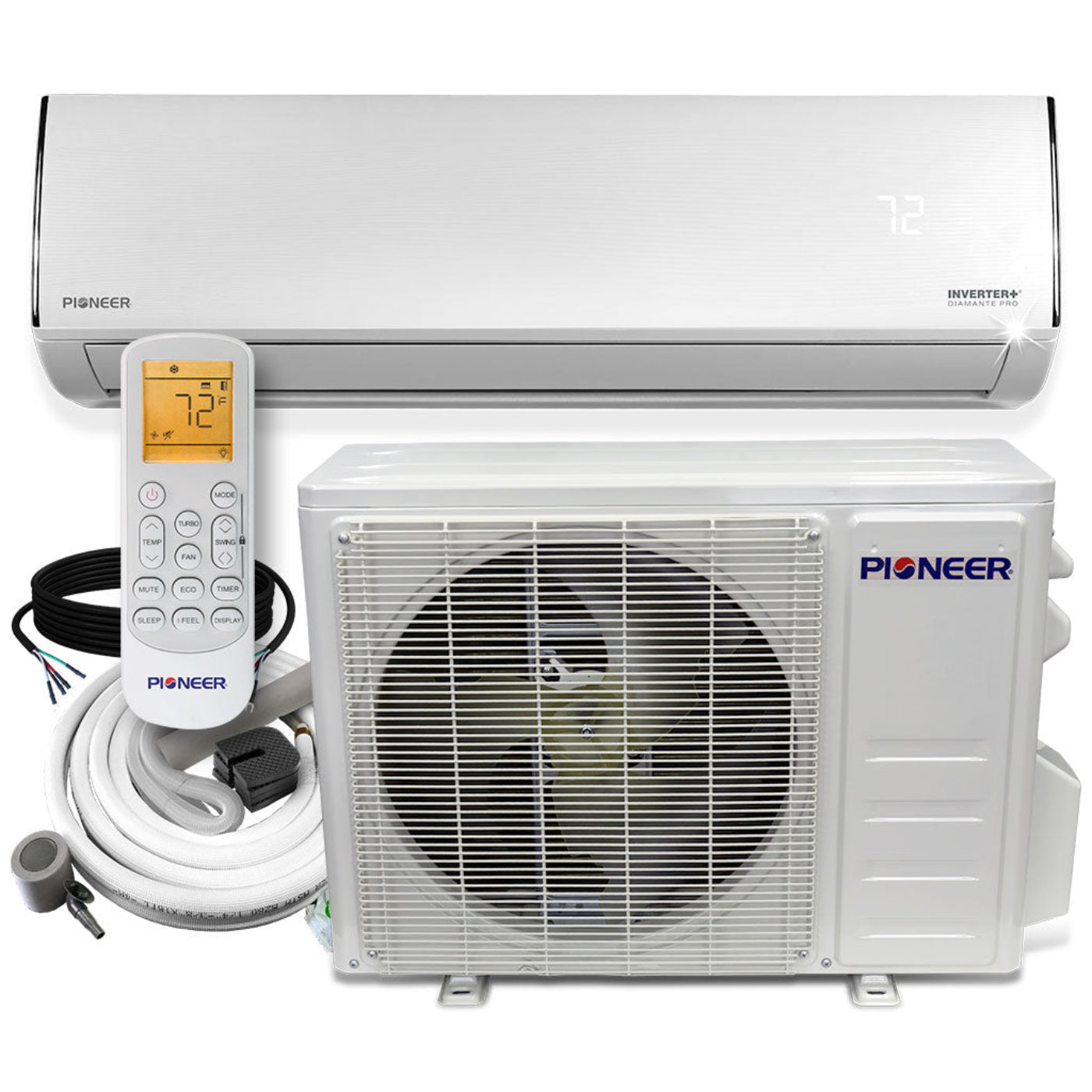

Pioneer Diamante Pro Series 9,000 BTU 19 SEER2 Ductless Mini-Split Air Conditioner Inverter+ Heat Pump Full Set 230V with 16 Ft. Kit - WYT009GLFI19RL
- High Efficiency Diamante Pro Ductless Mini Split Heat Pump System
- Cooling capacity: 9,000 BTU/H with 19 SEER2 / 10 EER2 efficiency
- Heating capacity: 10,000 BTU/H with 8.5 HSPF2 / 3.41 COP2 efficiency
- Voltage: 208~230V, 60Hz, 1Ph
- High Wall Mounted Air Conditioning & Heating System
- Variable Speed DC Inverter Operation Mode
-

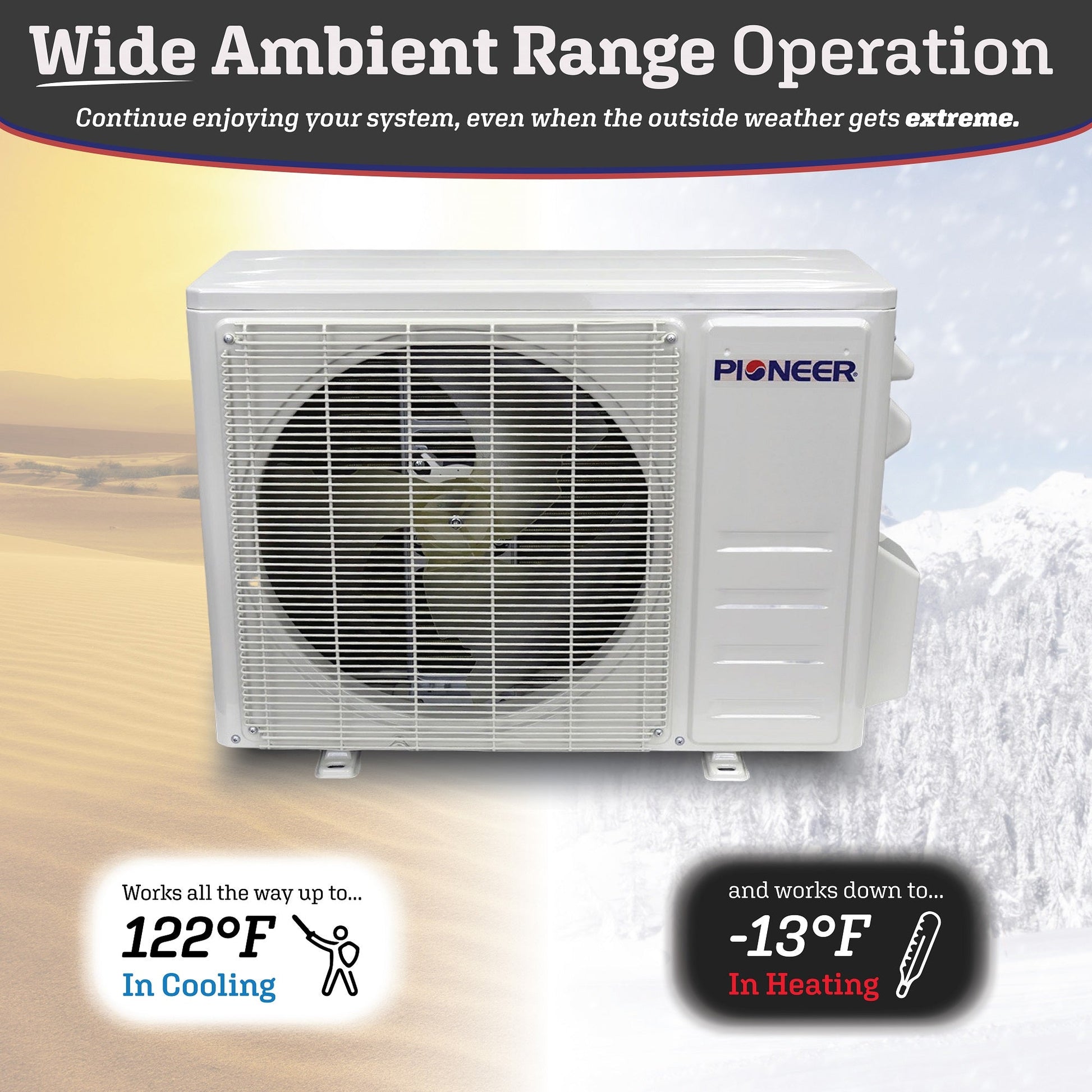

Low Ambient Unit (-13°F)
- AHRI Estimated Annual Operating Costs:
- Cooling: $63.00
- Heating: $201.00

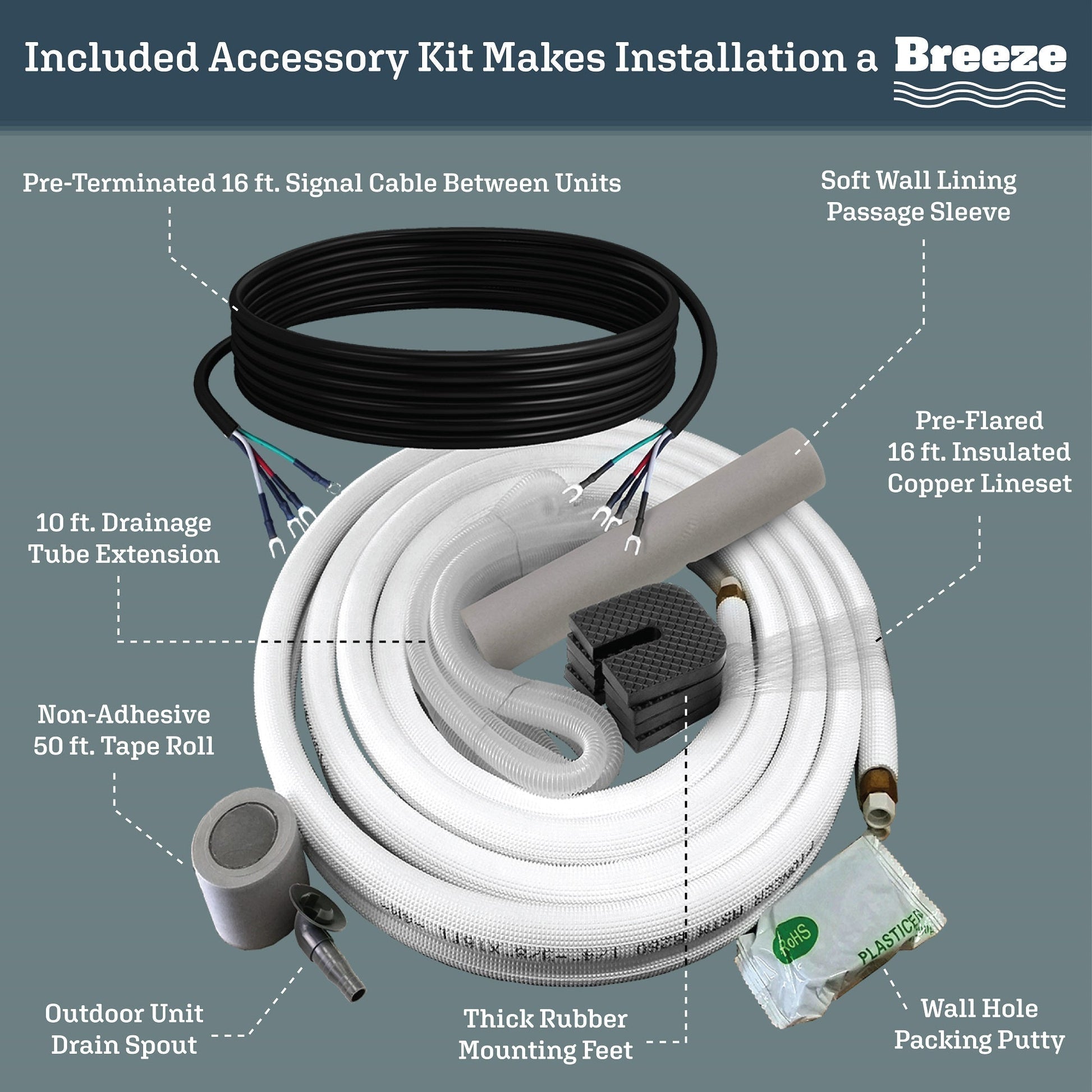

Included
- Indoor Unit
- Outdoor Unit

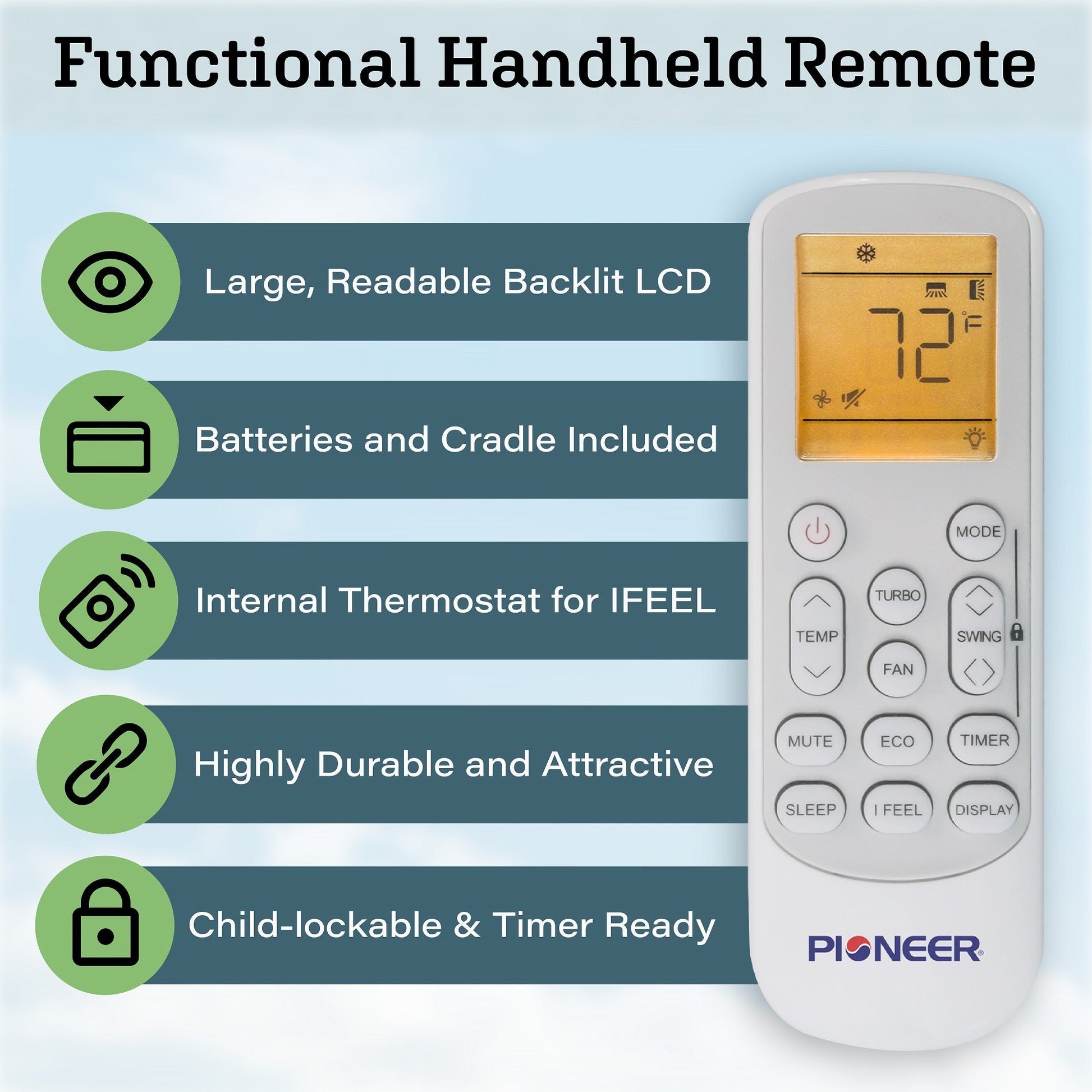

- Wireless Remote Control (with wall holder and batteries)
- 16 Ft. Copper Lines
- 16 Ft. Electrical Wire
- 10 Ft. Drain for indoor/outdoor
- Wall Passage Sleeve
- Putty for Wall Hole
- Leak Guard Sealer
- Wrapping Tape
- Installation Manual
- User’s Manual
What our Experts Think
-
Ideal choice for large spaces (≈800–1,100 sq ft)
The Pioneer Diamante Pro Series 30,000 BTU 19 SEER2 mini‑split is built to efficiently cool and heat larger rooms or open living areas without wasted capacity, making it a strong choice for living rooms, master suites, or multi‑purpose spaces.
-
Balanced energy performance (19 SEER2 + 9 EER2)
With a 19 SEER2 rating and Energy‑Star‑aligned design, this system delivers solid seasonal efficiency and lower operating costs compared with older HVAC units in the same class.
-
Inverter‑driven heat pump for year‑round comfort
Variable‑speed DC inverter technology provides precise temperature control, reduced noise, and quick comfort recovery, plus reliable cooling and heating in all seasons.
-
All‑in‑one system with installation kit
Includes indoor/outdoor units, wireless remote, 16 ft copper lines, electrical wire, drain hose, wall sleeve, and accessories—helping simplify installation planning and reduce extra purchases.
-
Good heating performance down to low ambient
Designed to deliver effective heating even in lower outdoor temperatures, offering comfort without needing separate heaters.
-
Comfort‑focused airflow and quiet operation
Indoor airflow (~847 CFM high) and low operational noise make this unit suitable for daily living environments without intrusive sound.
Q&A
Q: What room size is this 30,000 BTU mini split ideal for?
A: Perfect for large rooms or open spaces (approx. 1,000–1,500 sq. ft.), such as living rooms, offices, or open-plan areas.
Q: Does it provide both cooling and heating?
A: Yes, this inverter+ heat pump delivers efficient year-round cooling and heating.
Q: How energy-efficient is the 19 SEER2 rating?
A: With 19 SEER2, it provides solid energy efficiency while reducing electricity costs.
Q: What is included in the full set?
A: Includes indoor high-wall unit, outdoor condenser, and a 16 ft. pre-charged installation kit for easy setup.
Q: Does it support Wi-Fi or smart control?
A: Wi-Fi support may be available with compatible modules for remote operation and scheduling.
Q: How quiet is the indoor unit?
A: Operates quietly, typically 32–40 dB, suitable for bedrooms, offices, or living spaces.
Q: What voltage does it require?
A: Designed for 208–230V single-phase power.
Q: What comfort and usability features are included?
A: Turbo mode, ECO mode, sleep mode, self-cleaning, auto restart, timer, and multi-directional airflow for consistent comfort.
Q: Is professional installation required?
A: Yes, professional installation is recommended; the 16 ft. kit covers standard connections, with extra piping needed for longer runs.
Maintenance Tips
-
Clean washable air filters every 2–4 weeks – Maintains optimal airflow and 19 SEER2 efficiency for 1,000–1,200 sq ft areas
-
Run self-clean function regularly – Prevents mold, bacteria, and odor buildup inside the indoor unit
-
Keep indoor & outdoor units free of dust and debris – Ensures consistent airflow and peak heat exchange
-
Check and clear condensate drain line – Prevents leaks and water damage
-
Maintain 2–3 ft clearance around outdoor unit – Supports efficient cooling/heating performance
-
Inspect refrigerant lines annually – Ensures leak-free operation and reliable capacity
-
Use ECO, Sleep & Wi-Fi smart modes – Reduces compressor wear and lowers energy consumption
-
Schedule yearly professional servicing – Maximizes inverter efficiency and extends system lifespan
